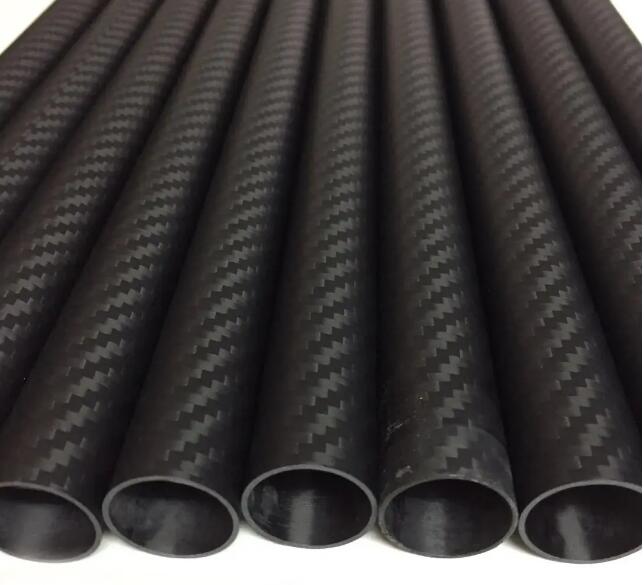

Roll wrapped carbon fiber tube (wall thickness 2mm)
Roll wrapped carbon fiber tube (wall thickness 2mm)

Roll wrapped carbon fiber tube (wall thickness 2mm)

$7.90
$7.90
SIZE OD(ID): 8mm(4mm)
Appearance: 2X2 Twill
surface treatment: Glossy or Matt(pls remark)
Subtotal: $7.90
Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns
Learn More.
Covid-19 Shipping Delay Notice
Roll wrapped carbon fiber tube (wall thickness 2mm)

Roll wrapped carbon fiber tube (wall thickness 2mm)

$7.90
Roll wrapped carbon fiber tube (wall thickness 2mm)
Roll wrapped carbon fiber tube (wall thickness 2mm)

Roll wrapped carbon fiber tube (wall thickness 2mm)

$7.90
SIZE OD(ID): 8mm(4mm)
Appearance: 2X2 Twill
surface treatment: Glossy or Matt(pls remark)
Description
Description
x
Description:
Size:  Od-outside diameter
          Id-inner side diameter
Process: the roll-wrapping process
Appearance: finished with an attractive 2x2 twill plain carbon fabric and a smooth glossy or matt finish
Applications: including UAVs, quad-copters, aero-modelling, camera-rigs, tripods, automation, leisure equipment, motor-sport and much more.
Property:
Density: 1.55~1.7 depends on process
Layers: 0/90 plus 3k outside
Tg: 120°C
Tensile Modulus (lengthways): 64GPA (it can be design)
Tehsile strength(lengthways):650mpa(it can be  design)

OUR tube introduction:

  • manufactured by wrapping multiple layers of prepreg carbon fibre reinforcement around a metal mandrel which is wrapped with shrink tape and cured at high temperature.This process has more longitudinal stiffness down their length, as well as strength in the 'hoop' direction, so resilient to crush, burst and torsional fracture

  • our range of roll wrapped tubes extends from 5mm (OD) up to 60mm (OD).
  •  Roll wrapped VS pultruded carbon fibre tube: roll wrapped tubes are better for applications where the tube may be subject to a variety of forces including bend, twist and crush whereas a pultruded tube will provide the maximum possible longitudinal stiffness at the expense of being more vulnerable to crush or twist.
  • ANY QUESTION, PLS FEEL FREE TO CONTACT : sophiashi.cross@gmail.com
